Shelly Pro 3EM Smart Energy Meter (Single Phase)

Name: Shelly Pro 3EM Smart Energy Meter (Single Phase)
Brand: Shelly
SKU: SHELLY-PRO-3EM
Availability: InStock

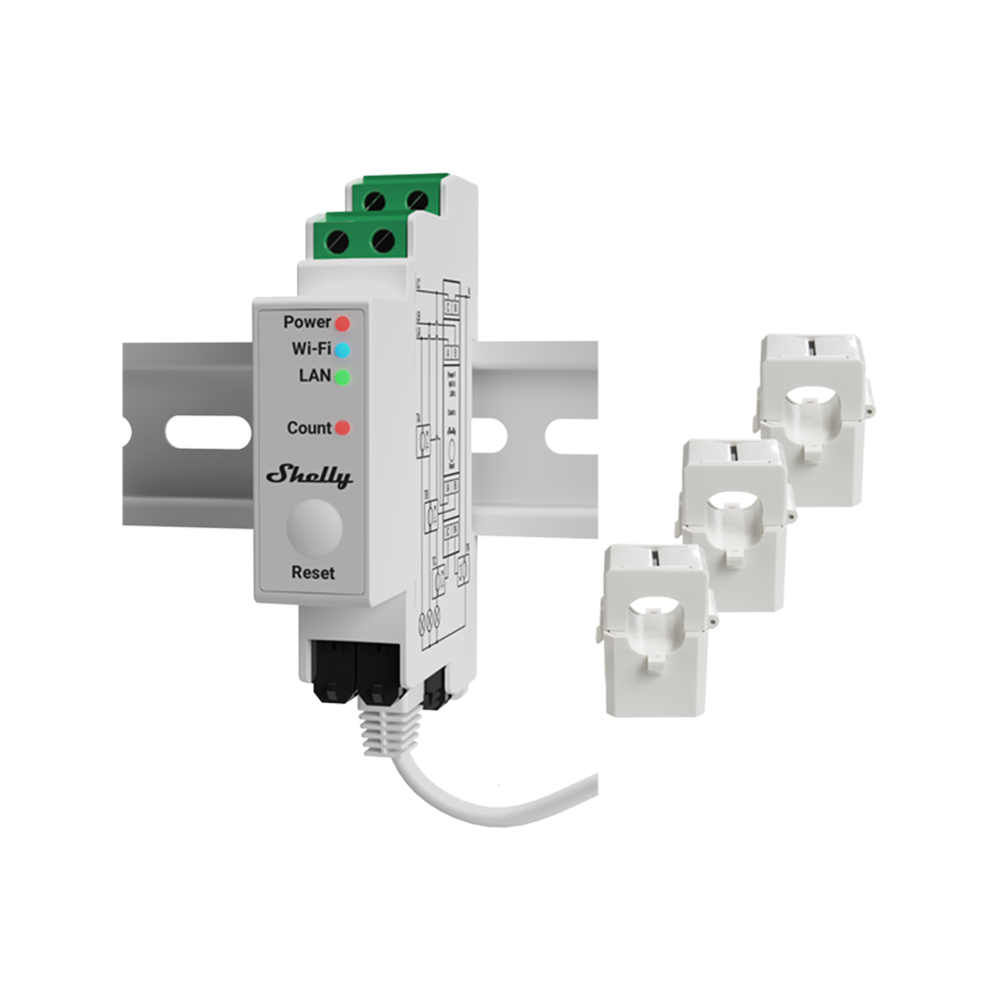

Included free with every smart meter installation and professional installation. The Shelly Pro 3EM is a DIN-rail mounted energy meter fitted in your consumer unit by our electrician. Wired for single-phase UK homes, it measures grid import, export and solar generation in real time using clip-on current transformers, so your battery follows live household demand and automatically stores surplus solar instead of exporting it. You also get live and historical consumption data in the Shelly app, with at least 45 days of one-minute records stored on the device itself.

Configuration

SetupHow does install work?

Plug & play

Self-fit · Follow the supplied instructions

Use only the supplied mounting system and check landlord, freeholder and local planning restrictions.

Connect the approved inverter and notify your network operator as the product instructions require.

Generation is used by loads running at the time; actual output depends on siting, orientation and weather.

£0

Shelly Pro 3EM

£0

Buy now — in stock

In stock · choose your delivery date at checkout

Sold and fulfilled by PowerXpress LTD, who take your payment and handle delivery, returns and warranty. Plug-In Solar (Plug In Battery Ltd) is their sales partner. Contact PowerXpress · PowerXpress Terms of Sale · Delivery · Returns · Privacy

Every order includes a free customer portal to track your order, follow delivery & installation, and download your receipt and documents — login sent by SMS the moment you order.

Key Advantages

Included free with smart meter installation and professional installation
Tracks grid import, export and solar generation in real time
Lets your battery follow live household demand instead of a fixed schedule
Automatically stores surplus solar instead of exporting it
Live and historical energy data in the free Shelly app, on phone or desktop
Clip-on CT clamps — no cutting or rewiring of your meter tails
At least 45 days of one-minute data stored on the device itself
Wi-Fi, LAN and Bluetooth, plus MQTT / Modbus / Matter integration
Class B accuracy to 1% (IEC 62053-21)
Fitted and certified by our qualified electrician
5-year manufacturer warranty

Technical Specifications

General

Model: Shelly Pro 3EM (SPEM-003CEBEU)
Configuration: Single phase (monophase mode)
Measurement: 4-quadrant, import and export
Accuracy Class: Class B active energy (IEC 62053-21)
Current Transformers: 3 × clip-on CT clamps, up to 120 A each
Voltage Measurement: 100–260 V RMS per phase
Power Supply: 110–240 V AC, 50/60 Hz
Reported Values: Voltage, current, active and apparent power, power factor, energy
Data Logging: At least 45 days of 1-minute records on device
Real-Time Clock: Yes
Connectivity: Wi-Fi 802.11 b/g/n (2.4 GHz), LAN, Bluetooth
Integration: MQTT, HTTP, WebSocket, Modbus, Matter-ready
Solar Ready: Yes — photovoltaic monitoring
Mounting: DIN rail, inside the consumer unit
Dimensions: 94 × 19 × 69 mm (H × W × D)
Operating Temperature: −20°C to 40°C
Relay: None — measurement only
Compliance: RED 2014/53/EU · LVD 2014/35/EU · EMC 2014/30/EU · RoHS2 2011/65/EU
Warranty: 5 years
Supplied With: Smart meter installation or professional installation

Downloads & Documentation

Shelly Pro 3EM — Datasheet & User Guide

shelly-pro-3em-datasheet.pdf
