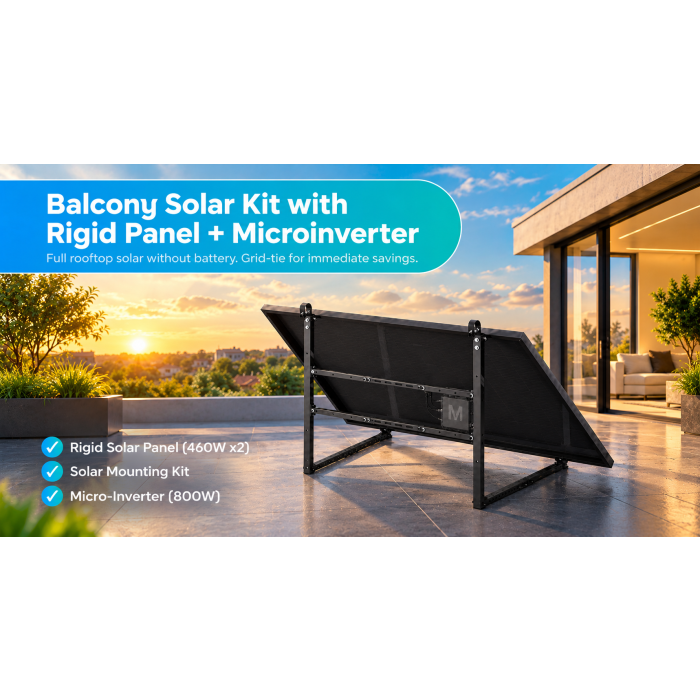

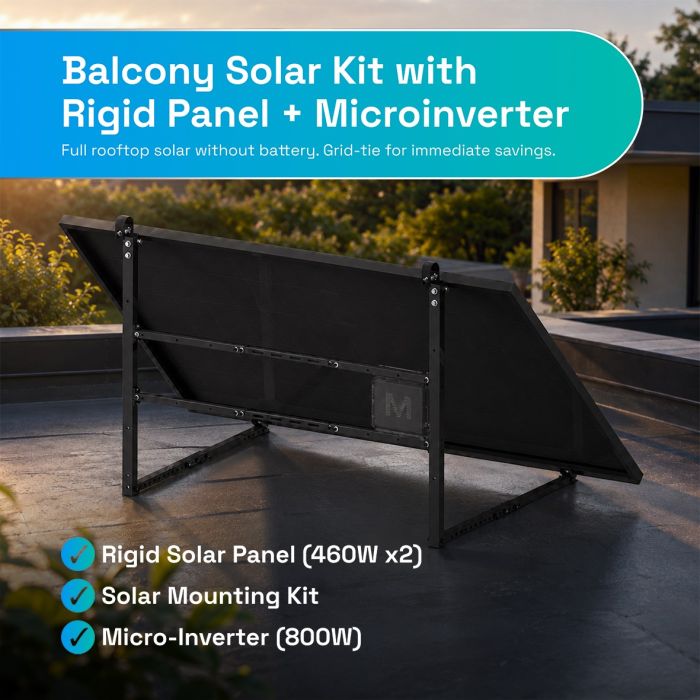

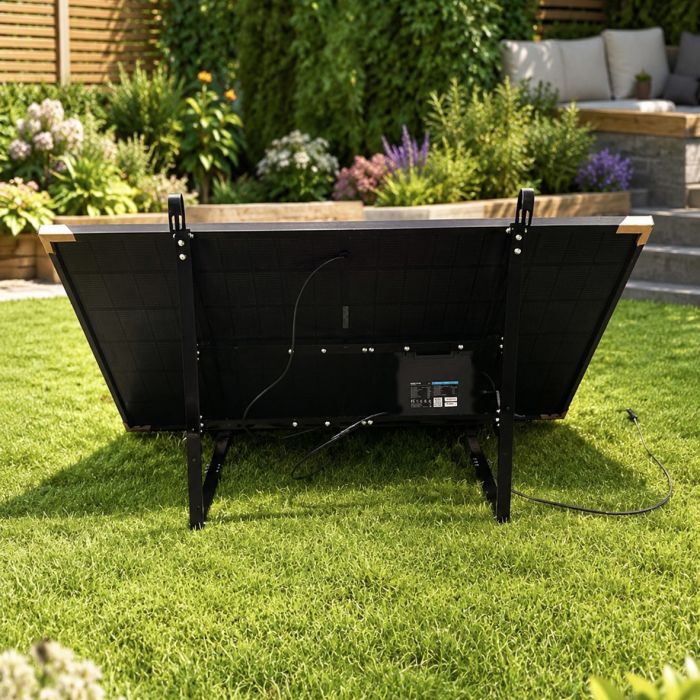

Plug-In Solar Kit — 920 W, 2 Rigid Panels + Marstek 800 W Micro-Inverter
A complete 920 W solar-only kit with two 460 W rigid panels, a Marstek 800 VA micro-inverter, the listed mounting equipment and a selectable 3 m, 5 m or 10 m UK plug lead. Check the mounting location, socket, permissions and current network-notification instructions before ordering.
Plug & play
Self-fit · Follow the supplied instructions
Use only the supplied mounting system and check landlord, freeholder and local planning restrictions.
Connect the approved inverter and notify your network operator as the product instructions require.
Generation is used by loads running at the time; actual output depends on siting, orientation and weather.
£599
Balcony Solar Kit
£599
In stock · choose your delivery date at checkout
Sold and fulfilled by PowerXpress LTD, who take your payment and handle delivery, returns and warranty. Plug-In Solar (Plug In Battery Ltd) is their sales partner. Contact PowerXpress · PowerXpress Terms of Sale · Delivery · Returns · Privacy
Every order includes a free customer portal to track your order, follow delivery & installation, and download your receipt and documents — login sent by SMS the moment you order.
Features
- 2 × 460 W bifacial N-type rigid solar panels
- Marstek 800 W micro-inverter
- Adjustable 15°–45° mounting brackets for wall, flat roof, garden or balcony rail
- 5 m solar cable included

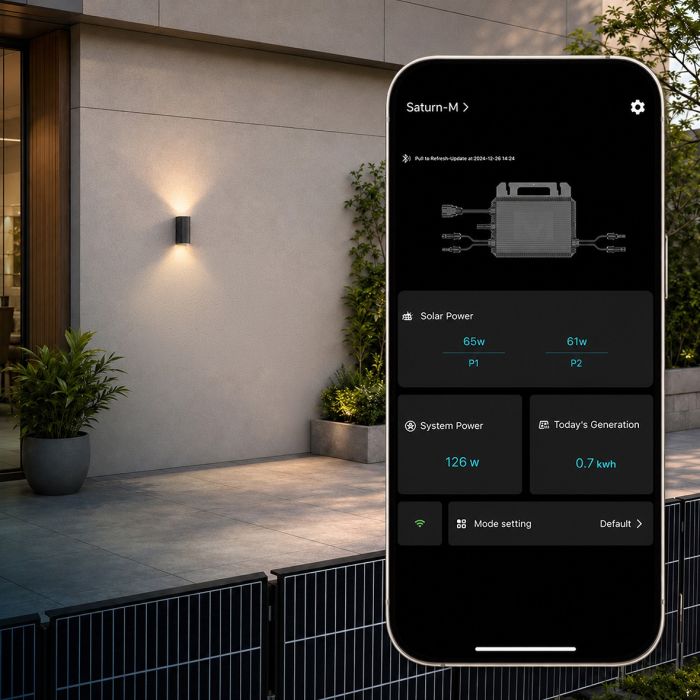

- Wi-Fi and Bluetooth monitoring in the Marstek app
- IP67-rated micro-inverter
Key Advantages
- Two 460 W N-type bifacial rigid panels
- Marstek micro-inverter rated at 800 VA continuous AC output
- Two independent MPPT inputs
- Selectable 3 m, 5 m or 10 m UK plug lead
- Mounting equipment listed for the selected kit
- IP67-rated micro-inverter
- Sold, shipped and supported by PowerXpress Ltd
What's in the box
- 2 × 460 W rigid solar panels
- 1 × Marstek 800 W micro-inverter
- 2 × balcony solar mounting kit
- 5 m solar cable
Technical Specifications
Key Specifications
- Input Power
- 250W
- Input Current
- 45.25A
- Output Voltage
- 34.72V
- Output Current
- 13.99A
- Watts
- 800W
- PF
- >0.99 (Default)
- Operation Temperature
- -40°C to +90°C
- IP Rating
- IP67
- Wire Length
- 5m
Installation
- Installation Type
- Balcony / Wall Mounted / Rack Mounted Module
General
- On-grid Connection Standard
- VDE 4150/0124, NF EN 50549, CEI 0-21, EN 50549-1, PTPIREE, PEA 1165-2020
- Regulatory/EMC
- IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4, EN 301 489-1/17/52, EN 62920, IEC/EN 61000-3-2/-3, EN 50665, EN 300 328, EN 50549-1
- Warranty
- 10 Years
Color & Material
- Shell Material
- Die-Cast and Anodized Aluminium Alloy
Sensors & Connectivity
- Wifi
- Yes
- Connectivity
- Wi-Fi, Bluetooth
- Compatible App
- Marstek
Energy Source
- Power
- 800W
- Power consumption
- <50mW
- Max. Apparent Output Power
- 800
- Rated Output Voltage Frequency
- 230V, 50/60Hz
- Rating Voltage
- 600V AC
- Solar Panel
- 920W
- Grid Voltage Range
- 180 - 275V
- Rated Grid Input/Output Current
- 3.48A
- Max. Input/Output Current
- 16A x 2 (DC)
- THDi
- <3%
- Overload Protection
- No
- Isolation Type
- Isolated
- External Protection
- Over-Voltage / Over-Current + Dual Shutdown Protection
- Cooling Strategy
- Natural Convection
- Relative Humidity
- ≤95% RH
- Display
- Wi-Fi + App Monitoring
Dimension & Weights
- Dimension
- 1762 x 1134 x 30 mm
- Length (Item)
- 1762 mm
- Width (Item)
- 1134 mm
- Height (Item)
- 30 mm
- Gross Weight
- 29.15 kg
Solar Panels
- Panel Model
- OSDA ODA460-24V-MHDBRz
- Module Efficiency
- 23.01%
- Cell Type
- N-type monocrystalline (half-cell)
- Bifacial Output
- Up to 510 W per panel
- Panel Electrical (STC)
- Vmp 29.47 V · Imp 15.60 A
- Max System Voltage
- 1500 V DC
- Temp Coefficient (Pmax)
- −0.290%/°C
- Front / Back Glass
- 2.0 mm AR-coated / 2.0 mm glazed
- Panel Dimensions
- 1762 × 1134 × 30 mm each
- Panel Weight
- 24.7 kg each (49.4 kg total)
Downloads & Documentation
Kit Technical Sheet
PowerXpress_Kit_Datasheet_90012.pdf
Quick Start & Safety Guide
PowerXpress_QuickStart_and_Safety.pdf
Mounting Kit — Installation Manual
Fastensol_Installation_Manual.pdf
Micro-Inverter — User Manual
Marstek_Micro_Inverter_User_Manual_of_MI0800W-0208.pdf
App — User Guide
Marstek_SATURN_App_User_Guide.pdf
